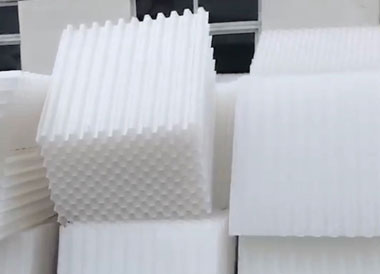

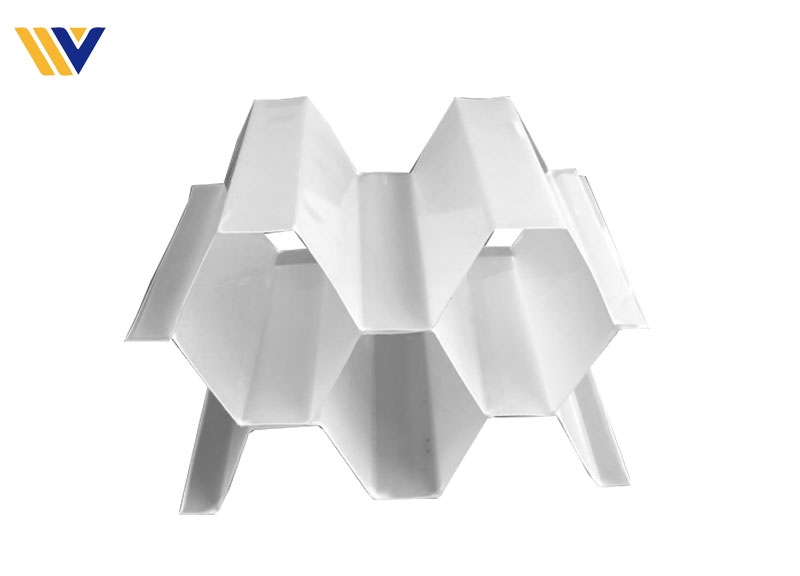

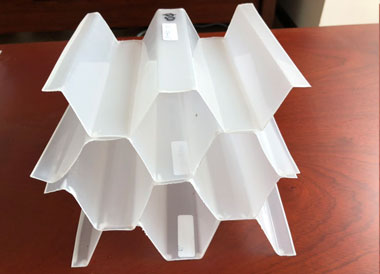

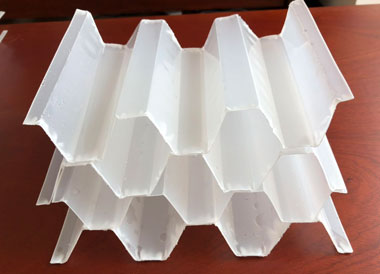

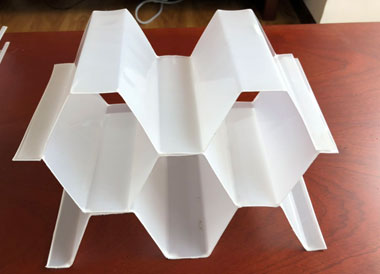

PP Tube settler

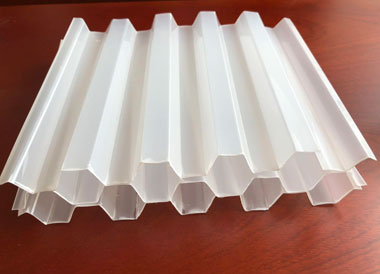

1. Tube settler Introduction

Waste Water Treatment Lamella Clarifier Packing Tube Settler For Sedimentation Tank  is very suitable in all different clarifiers and removing sand. It is regarded as universal water treatment equipment in water supply and drainage engineering. It has wide application, high handling efficiency, small area, etc. It is suitable in removing sand in inlet, industry and drinking water precipitation, separation in oil & water.

2.  Tube Settler Main Feature

Large wetted perimeter, hydraulic radius is small.
The laminar good condition, particles falling from flocculent flow interference.
When the tube for 1 m long, effective load by 5 tons/square meter design.And V control in 2.5- 3.0 mm/SEC effluent water,within the scope of the best.
In the water inlet place inclined pipe length, the honeycomb 2.0-3.0 meters, may in the 50-100 kg/m3 clay sand content of high turbidity safe operation of processing.
The plastic inclined packing, which the processing ability is to destabilize the flat streaming traps three to five times, accelerate the clear pool and pulse clarify pool two to three times.
The material is with UV radiation protection.

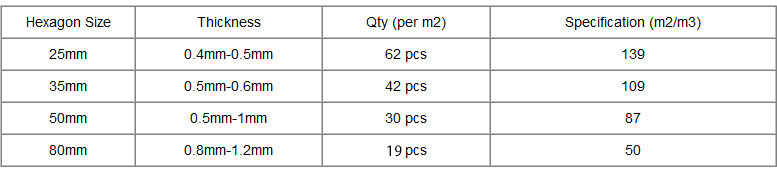

3. Tube Settler Technical sheet

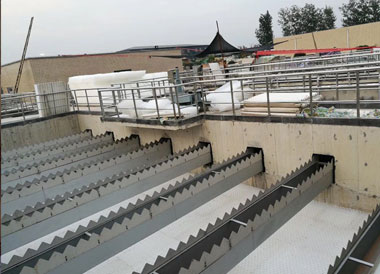

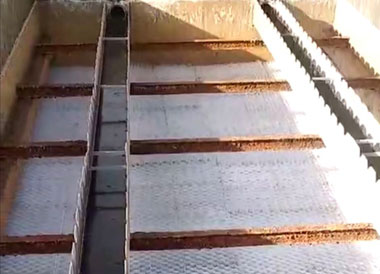

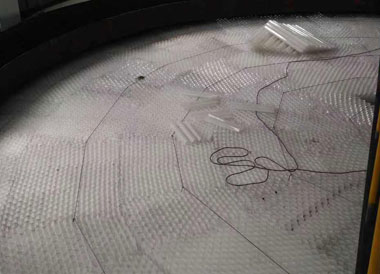

4. Our projects
